支持下单定做出口，
特征

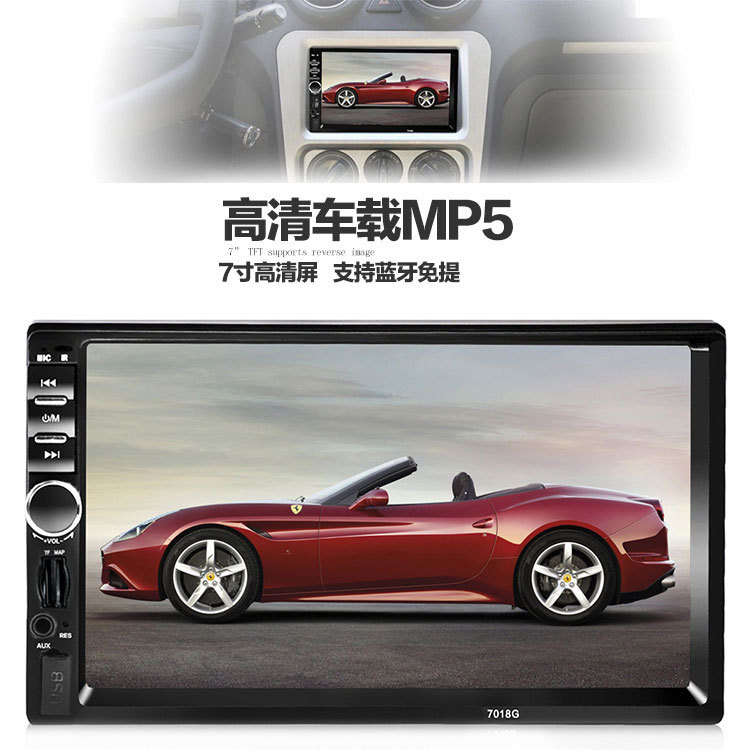

7“TFT高清触摸屏BT / FM / TF / USB MP5 倒车后视优先

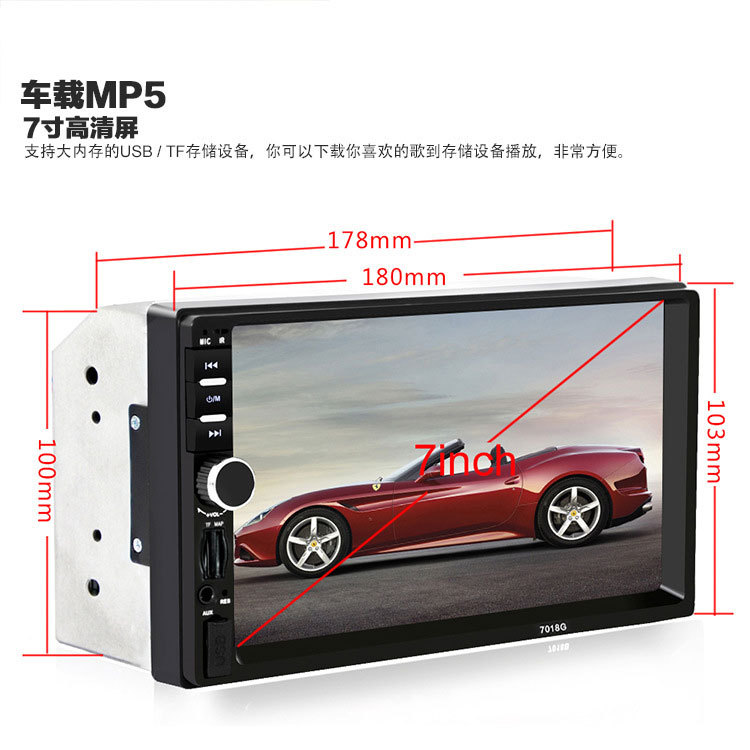

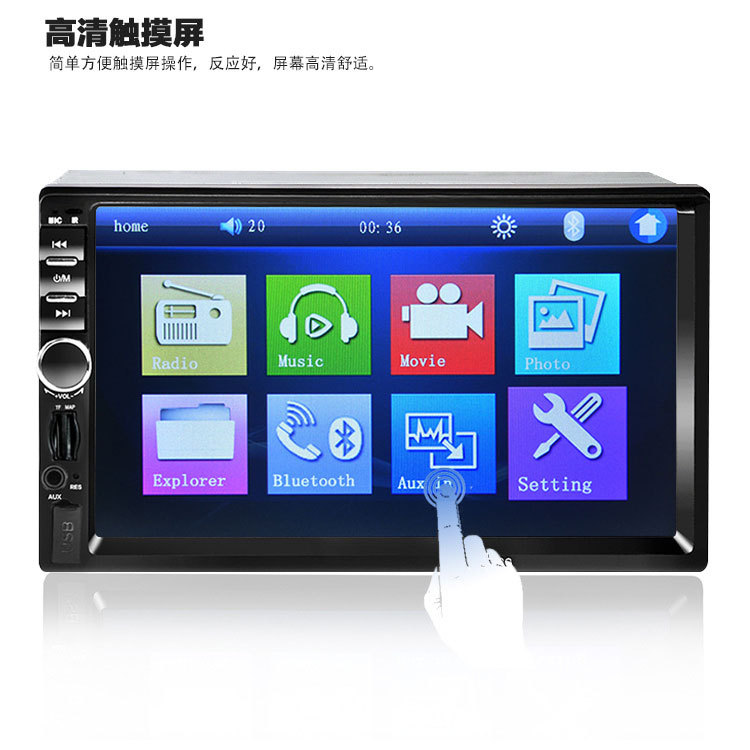

•7寸TFT触摸屏
•带TF卡插槽，带USB 2.0端口。

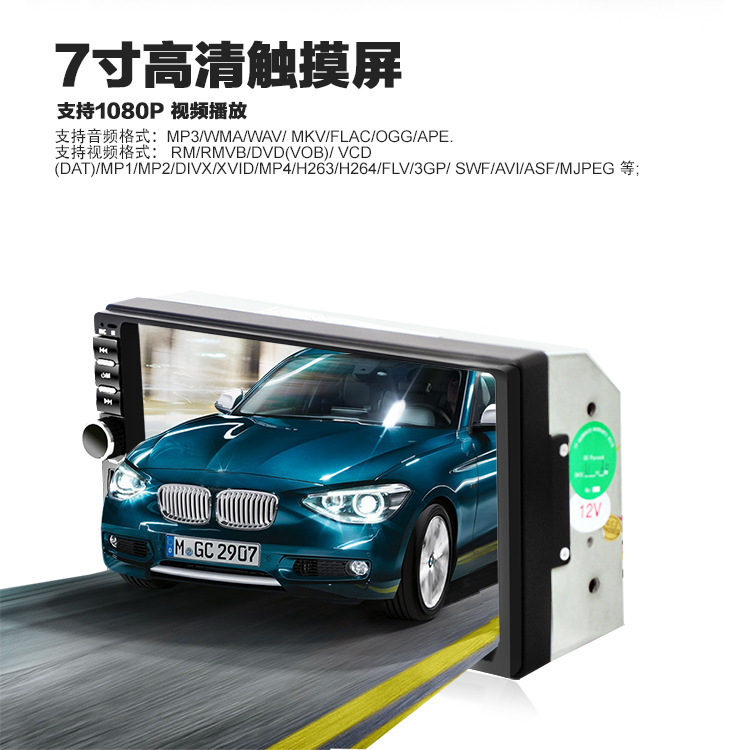

•1080P视频格式
•支持MP3 / WMA / WAV / MKV / FLAC / OGG / APE的音频播放格式。
•支持RM / RMVB / DVD（VOB）/ VCD（DAT）/ MP1 / MP2 / DIVX / XVID / MP4 / H263 / H264 / FLV / 3GP / SWF / AVI / ASF / MJPEG等视频播放格式。
•MOSFET放大器：60WX 4大功率输出。
•FM范围：87.5MHz?108.00MHz（欧洲）
•使用遥控器
•在收音机或TF / USB模式下使用自动存储器存储功能关闭电源
•时钟功能
•静音功能
•蓝牙功能
•低音和高音，L＆R声道稳定器
•辅助输入功能
•后视优先
•视频输入功能
•定位系统
Warning
1.0nly connect the unit to a DC 12V power supply with negative grounding
2. Never install the unit where the operation for safety driving is restrained
3. Never use the video display function in the front when driving to prevent the
violation of laws regulation and also to reduce the risk of traffic accident except using for rear view video camera
4. Never expose the unit, amplifier, speakers to moisture or water to prevent electronic sparks or fires
5. Pls don't change the fuse in the power cord without professional guidance,
improper fuse may cause damage to this using unit or even cause fire
Installation
1. pls make the unit m proper place, connect the unit refer to the diagram, and test it works well or not
2. Pls wrapped the connection line with insulation tape to ensure complete wiring after testing well
3. Pls bend the hook of metal 1, and insert the metal to instrument panel then fixed it
4. Put the unit into metal hook until it lock
General Features
7”TFT HD Touch Screen BT/FM/TF/USB MP5 Rearvien Camer
• 7 inch digital TFT TouchScreen
• With TF card Slot, With USB 2.0 port.
• 1080P Video Format
• Support the Audio playback format of MP3/WMA/WAV/ MKV/FLAC/OGG/APE.
• Support the Video playback format of RM/RMVB/DVD(VOB)/ VCD(DAT)/MP1/MP2/DIVX/XVID/MP4/H263/H264/FLV/3GP/ SWF/AVI/ASF/MJPEG etc;
• MOSFET amplifier: 60watts X 4 max power output.
•FM Range: 87.5MHz~108.00MHz(Europe)
• With Remote Control
• Power-off with auto-memory store function under radio or TF/USB mode
• Clock Function
• Mute Function
• BT Function
• Bass & Treble,L&R channel stabilizer
• Aux In Function
• Rearvien camera Function
• Video input Function
• gps
基本操作
Basic operation

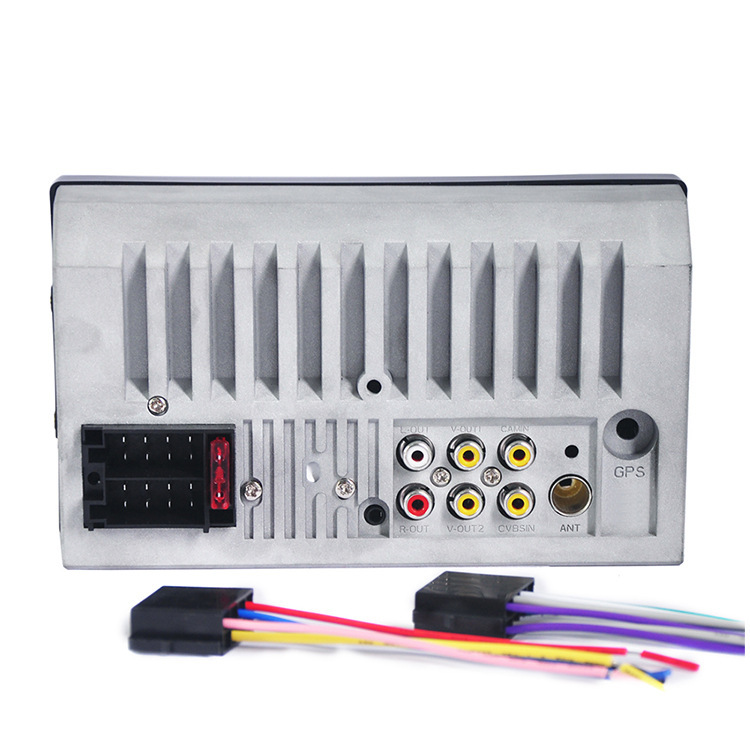

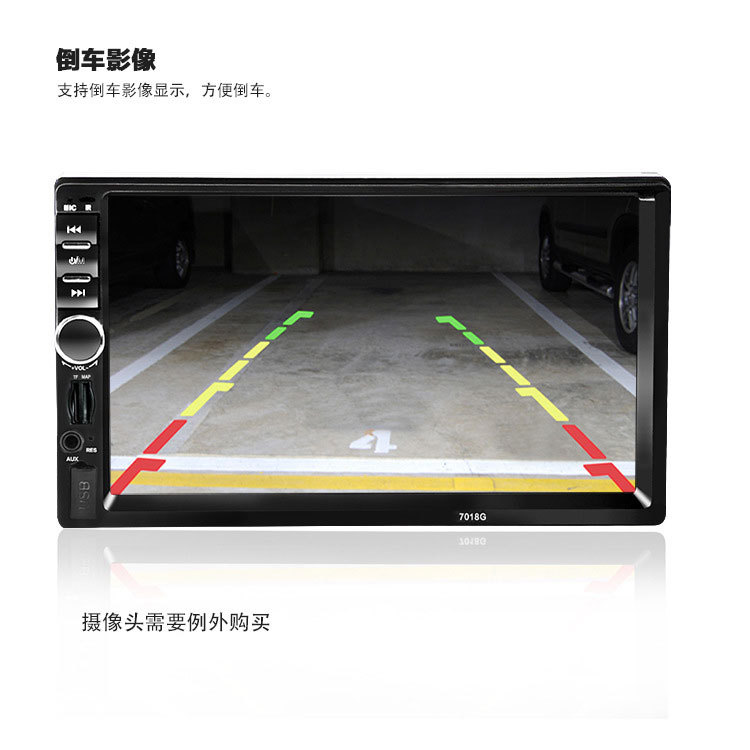

1, when use reversing rear view function.reversing video signal from the corresponding port input connection back line.when reversing will automatically switch to reversing visual state.

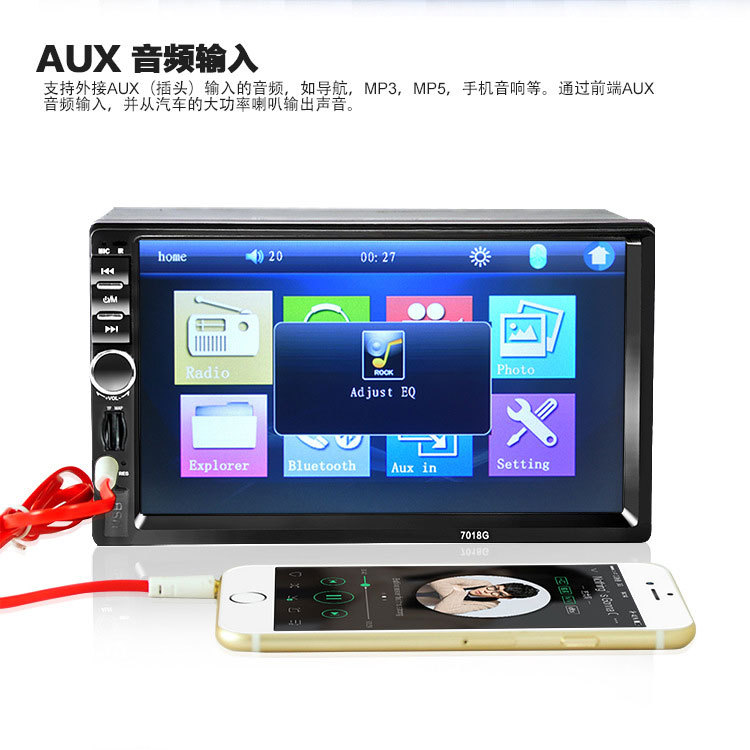

2, Audio/Vedio input(optional)
Connect audio/Vedio lines,press Mode can select AUX-2 state

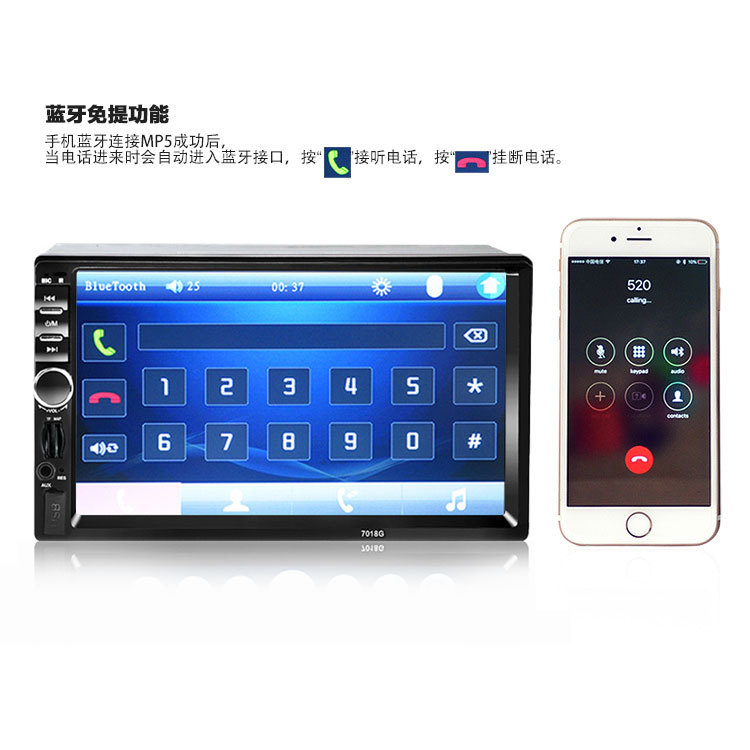

3. bluetooth function only for the unit with bluetooth
Find the device and enter the pairing password Pair "0000"
Pis check the speaker line carefully before installation
If any grounding or touching, pis connection again or the unit will be burned
Specification
SNR............................................................... 65dB
Frequency response............................... 20Hz-20KHz
Loudspeaker impendance .. ... .... .... ... .... ... . ... .... 4Ω_8Ω
Th e maximum output power ............................. 4*60W
Tone Control............................... Bass+/-7dB(100Hz)
Treble+/-7dB(1 OOHz)
FM frequency .................................... 87.5MHz-108MHz
Sensitivity......................................................... 25dB
Selectivity ............................................... 60dB
Separatio......................................................... 35dB
